U Shaft Right Angle DC Gear Motor 16.5g Weight With 10×24mm Gearbox
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KGM1024-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $2.8-$4.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 1.5vdc-24vdc | Speed(rpm): | 3rpm-3200rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel Gears | Brush Type: | Metal-brushed Or Carbon-brushed |
| Type: | DC Gearbox Reducer Motor | Rated Torque: | ≤2.1Kg.cm |
| Stall Torque: | ≤3.1Kg.cm | Continuous Current(a): | ≤2.1A |
| Output Power: | ≤2.2W | Weight: | 16.5g |
| High Light: | 2.1A Right Angle DC Gear Motor,16.5g Right Angle DC Gear Motor,10×24mm Gearbox right angle motor |
||
Product Description
U shaft Small size dc 3v 5v 6v 12v 24v GM24-N20 90 degree gear motor
China factory supply
Product introduction

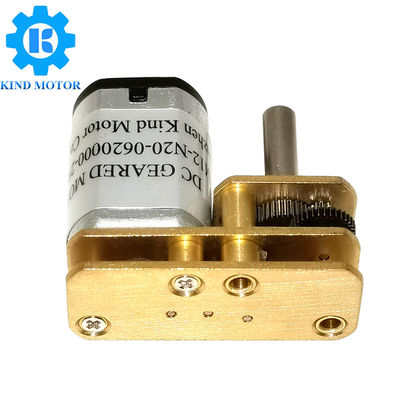

This is 12mm dc brushed motor with 10×24mm all-metal spur gearbox,it's reversed shaft,
the gearbox can with N10 N20 N30 and N50 motor,the motor have precious metal-brushed
and carbon-brushed,carbon-brush have longer lifetime,U shaft can save product space.
Brand:Kind Motor
| Model | KGM1024-N20 |
| Gears Material | Stainless steel |
| Gearbox Reduction ratio | 1/10～1/1000 |
| Motor model | FF-N10 ,FF-N20 ,FF-N30 and FF-N50 Brushed Motor |
| Brush Type | Metal-Brushed/Carbon-Brushed |
| Voltage | 1.5vdc,3vdc,3.7vdc,4.5vdc,5vdc,6vdc,7.4vdc,8vdc,9vdc,12vdc,24 vdc |
| Speed | 3rpm-3200rpm |
| Rated Torque |
＜180mNm
|
| Shaft Size | 3mm D shaft |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,Smart home,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
3v 5v 6v N20 Metal brush motor with metal gearbox
