Product Details:

Place of Origin: China
Brand Name: Kind Motor
Certification: ISO9001/RoHS/CE
Model Number: KWM1218-N20

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: $2.6-$4.5/PCS
Packaging Details: Expect Standard Carton and Foam
Delivery Time: 1-6 weeks
Payment Terms: L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability: 500000/Month
Get Best Price Contact Now

Detail Information

Voltage(v): 1.5 Volt-24 Volt Speed(rpm): 5 Rpm-300 Rpm
Gears Material: Stainless Steel Gears Brush Type: Metal Brushes Or Carbon Brushes
Type: Worm Gearbox Motor Rated Torque: ≤2.5Kg.cm
Stall Torque: ≤4Kg.cm Continuous Current(a): ≤3.1A
Output Power: ≤2.1W Weight: 16g
High Light:

12mm Right Angle DC Gear Motor

,

3.1A Right Angle DC Gear Motor

,

N30 90 degree gear motor

Product Description

Factory supply low speed small size 12mm N10 N20 N30 brush DC 3vdc

3.7vdc 6vdc 12vdc 24vdc worm drive gear reduction motor with encoder



Product introduction

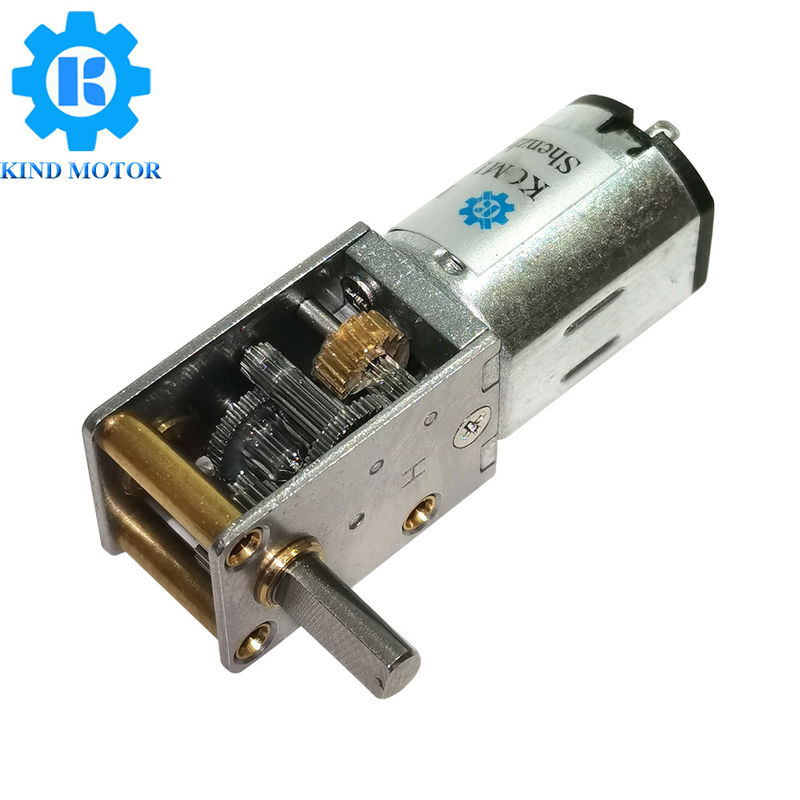

This is small dc N10 N20 N30 brushed motor with 12×18mm metal worm gearbox,

it have right angle shaft,the motor have precious metal-brushes and carbon-brushes,the motors

parameters can customized,the gearbox have many reduction ratio to choose ,higher reduction

ratio have higher torque



Brand:Kind Motor

Model KGM1218-N20
Gears Material Stainless steel
Gearbox Reduction ratio 108:11000:1
Motor model FF-N10 ,FF-N20 ,FF-N30 and FF-N50 Brushed Motor
Brush Type Precious Metal-Brushed/Carbon-Brushed
Voltage 1.5 volt,3 volt,3.7 volt,4.5 volt,5 volt,6 volt,7.4 volt,8 volt,12 volt,24 volt
Speed 5rpm-500rpm
Rated Torque
<2.5kg.cm
Shaft Size 3mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,etc.



Product Parameters

ODM & OEM

If you need other size and patameters,diameter from 8mm~60mm can be chosen
The parameters and shaft size can customized



N20 Metal brushed motor with 12mm*18mm worm reduction gearbox
