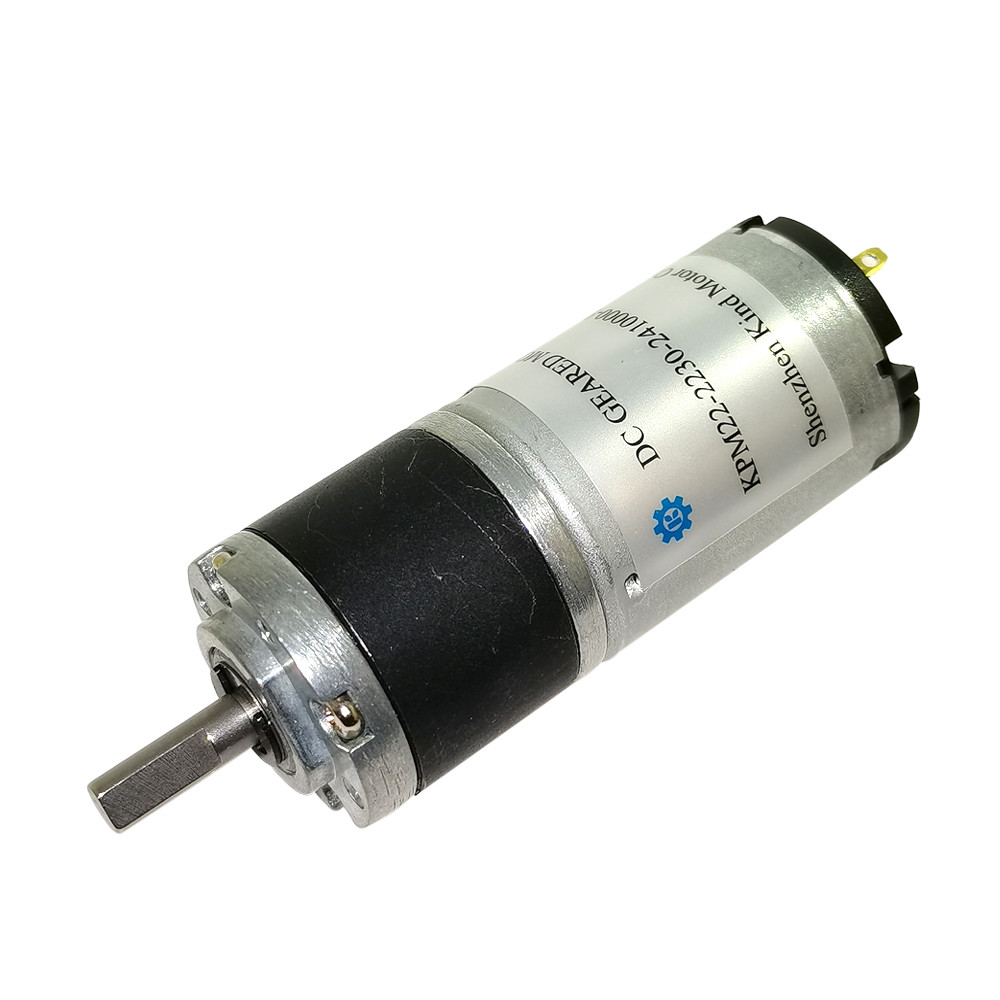

Low Noise 1rpm DC Planetary Gear Motor 16mm 5w Permanent Magnet
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPM22-2230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $5.5-$12.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 3.0 Volt～36.0 Volt | Speed(rpm): | 1 Rpm～3600 Rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Carbon-brushed/Metal-brushed |
| Type: | DC Planetary Gear Motor | Rated Torque: | ＜6.0kg.cm |
| Stall Torque: | ＜12.0kg.cm | Continuous Current(a): | ≤7.8A |
| Output Power: | ≤4.7W | Weight: | 68g |
| High Light: | 1rpm DC Planetary Gear Motor,5w DC Planetary Gear Motor,Permanent Magnet Brushed DC Geared Motor |
||
Product Description
Low speed 16mm 22mm 5w 10w 20w 30w 40w 50w dc 5v 6v 12v 24v 130 180 2230 2238 metal planetary geared dc brush motor
Product introduction
This is low noise dc motor 6v 12v 24v permanent magnet 22mm brushed planetary gearbox,
the voltage can be 3 vdc 5 vdc 6 vdc 7.2 vdc 8 vdc 9 vdc 12 vdc 24 vdc,the planetary gearbox
have high torque,it's can with flat 130 180 carbon brush motors and round 2230 2238 carbon
brush motor,the motors parameters can customized,the motors can with encoder,the encoders
have 12ppr and 16ppr.
Brand:Kind Motor
| Model | KPM22-2230 |
| Gears Material | Metal |
| Gearbox Reduction ratio | 4/1～2418/1 |
| Motor model | 2230 permanent magnet motor,length is 30mm 2238 permanent magnet motor,length is 38mm |
| Brush Type | DC Brushless Motor |
| Voltage |
4.5 volt,5.0 volt,6.0 volt,7.4 volt,9.0 volt,
12.0 volt,24.0 volt
|
| Speed | 1rpm ～3600rpm |
| Rated Torque |
＜0.6Nm
|
| Shaft Size | 4mm D shaft(Can Customized) |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
22mm planetary reduction gearbox with dc 12v 24v 2230 permanent magnet
motor
22mm planetary trduction gearbox with dc 6v 12v 24v fk180 permanent
magnet motor
