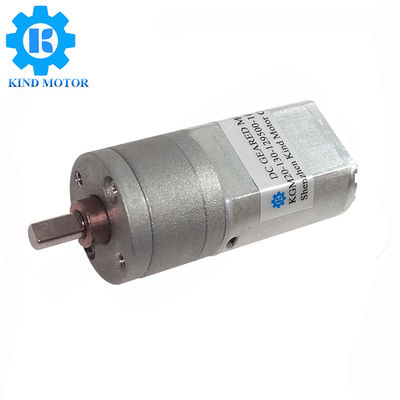

Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KGM20-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $2.5-$5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 3.0volt～24.0 Volt | Speed(rpm): | 3rpm～5500 Rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Carbon Brushed /Metal Brushed |
| Type: | Gearmotors | Rated Torque: | ≤4.3Kg.cm |
| Stall Torque: | ≤6.3Kg.cm | Continuous Current(a): | ≤6.3A |
| Output Power: | ≤3.8W | Weight: | 43g |
| High Light: | 3.8W gear motor 12v high torque,6.3Kg.Cm gear motor 12v high torque,6300gCm carbon brush motor dc |
||
Product Description
Micro 20mm DC 5V 6V 12V 24V FK130 FK180 dc brush motor with 20mm
metal gearbox suppliers
Product introduction
This is Micro DC 5V 6V 12V 24V FK130 FK180 dc brush motor with 20mm metal gearbox,
the motors have metal-brushed and carbon-brushed,the metal gearbox can with fk130 and fk180
brushed motors,the motors have same diameter 20mm,fk130 length is 25mm,fk180 length is 32mm,
the gearbox have many different reduction ratio,the motors can with 12ppr and 16ppr encoder.
Brand:Kind Motor
| Model | KGM20-180 |
| Gears Material | Metal |
| Gearbox Reduction ratio | 1:9 to 1:488 |
| Motor model |
FK130 Brushes Motor(length is 25mm) FK180 Brushes Motor(length is 28mm) |
| Brush Type | Metal-Brushed/Carbon-Brushed |
| Voltage | 4.5 volt,5 volt,6 volt,7.4 volt,9 volt,12 volt,24 volt |
| Speed | 3 rpm - 5500 rpm |
| Rated Torque |
＜4300g.cm
|
| Shaft Size | 4mm D shaft |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
FK180 dc brush motor with 20mm metal gearbox
