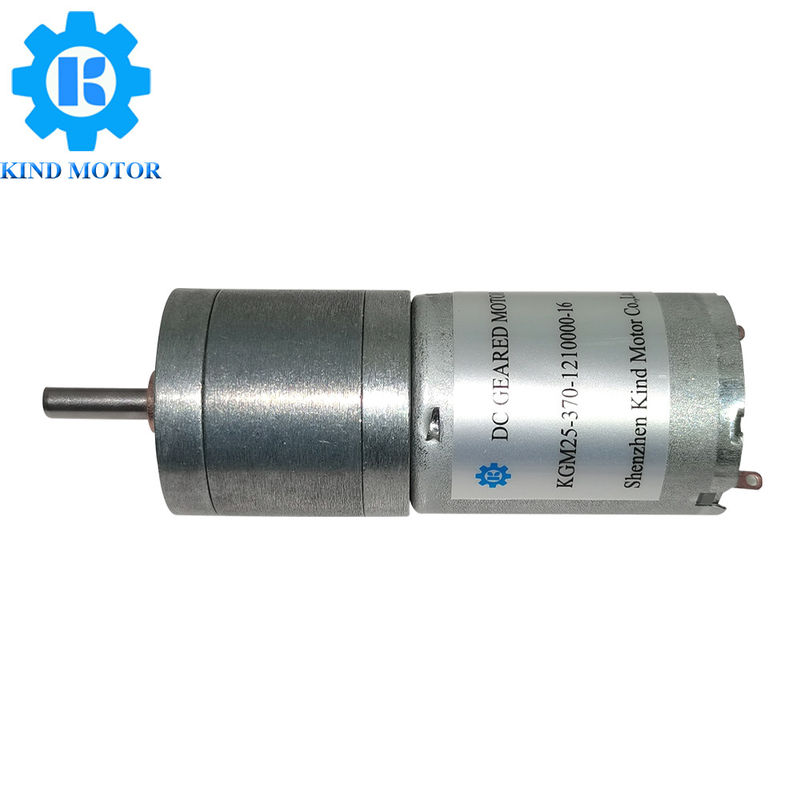

Low Noise Micro Dc Motor With Encoder , 6kgCm Dc Gear Motor 30 Rpm
Product Details:
Place of Origin: | China |
Brand Name: | Kind Motor |
Certification: | ISO9001/RoHS/CE |
Model Number: | KGM25-370 |
Payment & Shipping Terms:
Minimum Order Quantity: | 500pcs |
---|---|
Price: | $2.5-$5/PCS |
Packaging Details: | Expect Standard Carton and Foam |
Delivery Time: | 1-6 weeks |
Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
Supply Ability: | 500000/Month |
Detail Information |
|||
Voltage(v): | 3.0~24.0 Volt | Speed(rpm): | 2rpm~5000rpm |
---|---|---|---|
Gears Material: | Stainless Steel | Brush Type: | Carbon Brushed /Metal Brushed |
Type: | DC Gearmotors | Rated Torque: | ≤6Kg.cm |
Stall Torque: | ≤8Kg.cm | Continuous Current(a): | ≤3A |
Output Power: | ≤5Watt | Weight: | 0.06Kg |
High Light: | 30 Rpm micro dc motor with encoder,6kgCm micro dc motor with encoder,dc gear motor 30 rpm |
Product Description
Low noise GM25-370 GM25-310 25mm dc 5v 6v 12v 24v gear motor with
encoder manufacturers
Product introduction
Low noise GM25-370 GM25-310 25mm dc 5v 6v 12v 24v gear motor with encoder,
the motors have Precious Metal Brush and carbon brush,the metal gearbox can with 310
(length 18mm) and 370(length 30mm)brushed motors,the gearbox have many different
reduction ratio,different reduction ratio have different length,the motors can with 12ppr
and 16ppr encoder.
Brand:Kind Motor
Model | KGM25-370 |
Gears Material | Metal |
Gearbox Reduction ratio | 1:4 to 1:500 |
Motor model |
310 Brush Motor(length is 18mm) 370 Brush Motor(length is 30mm) |
Brush Type | Metal-brush and Carbon-brush |
Voltage | 3 volt,4.5 volt,5 volt,6 volt,7.4 volt,9 volt,12 volt,24 volt |
Speed | 2 rpm - 5000rpm |
Rated Torque |
≤6kg.cm
|
Shaft Size | 4mm D shaft |
Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
GM25-370 25mm dc 5v 6v 12v 24v gear motor
