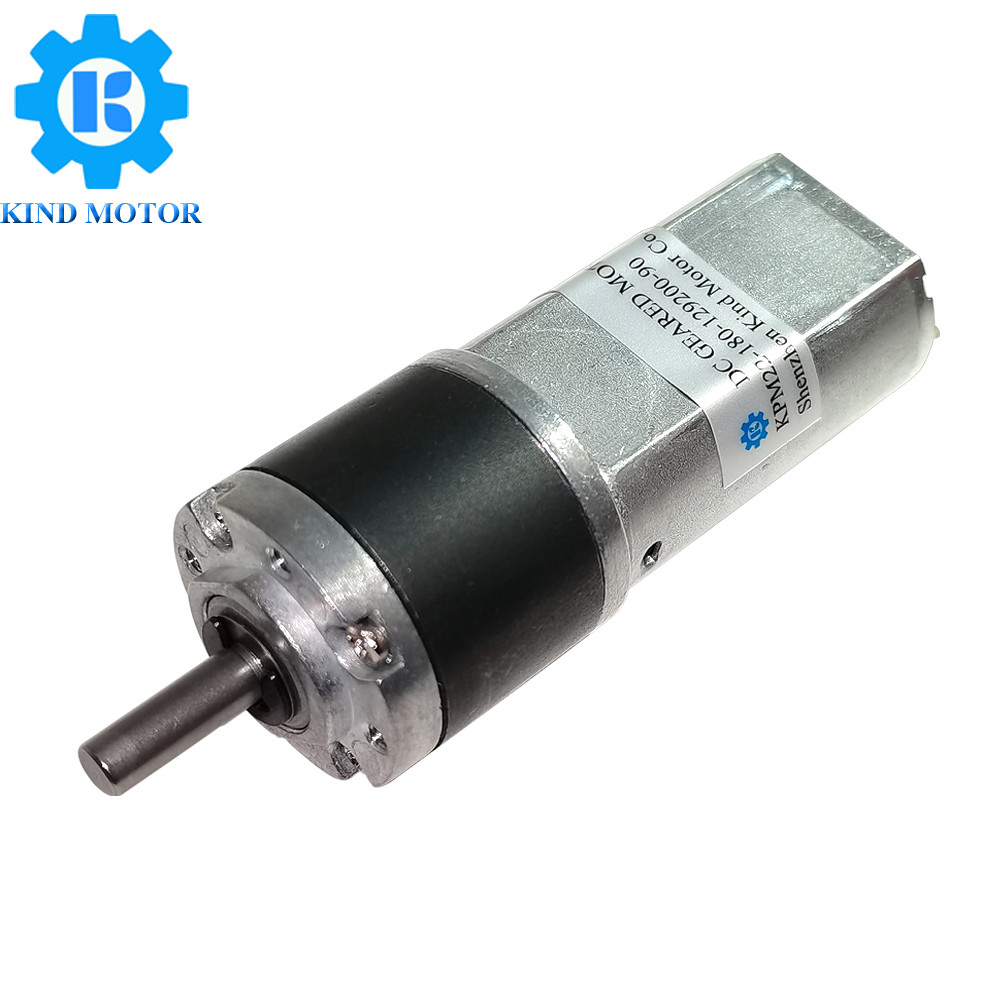

High torque low speed diameter 22mm dc 3v-24v encoder planetary gear motor
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | kind motor |
| Certification: | CCC, ce, RoHS, VDE, ISO9001 |
| Model Number: | KPM22-180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | $4.00 - $12.00/Pieces |
| Packaging Details: | 1. Expect Standard Carton and Foam<br> <br>2. 1000pcs/carton |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | Other | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Electric Lock |
|---|---|---|---|
| Type: | GEAR MOTOR | Torque: | ≤18kg.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Explosion-proof | Speed(RPM): | 1-5000rpm |
| Continuous Current(A): | 0.05-1A | Efficiency: | IE 1 |
| Product Name: | Low Speed Diameter 22mm Dc 3v-24v Encoder Planetary Gear Motor | Gear Material: | Metal |
| Application: | Intelligent Product | Operating Temperatue Range: | -10- +50℃ |
| Diameter Size: | 22mm | Weight: | 60g |
| Direction Of Rotation: | CW CCW | Voltage Range: | 3v-24v |
| Noise: | Low Noise Level | Brush Type: | Carbon Brush Or Metal Brush |
| Port: | ShenZhen /HK | ||
Product Description
High torque low speed diameter 22mm dc 3v-24v encoder planetary gear motor
Support Customization | ||
Prodcut Type | DC Planetary Geared Motor | |
Model | KPM22-180 | |
Voltage | 3-24v | |
Speed | 1 to 5000rpm | |
Torque | ≤18kg.cm | |
Shaft diameter | 4mm D Shaft(Can Customized) | |
Encoder | Can Add | |
Typical Application | Electric Lock, Safebox, Robot, Acuator, Electric Valve, Toy,Intelligent product. | |
█ The parameters and shaft size can customized
Product superiority:
█ 15 years experience in gear and motor design
█ OEM, ODM
█ Many type products to choose
█ 100% inspection before shipment
█ Good price and service
KPM16-050
Dia 16mm planetary geared motor
KPM36-555
Dia 36mm planetary geared motor
KPM42-775
Dia 42mm planetary geared motor
KGM16-050
Dia 16mm spur geared motor
KGM20-180
Dia 20mm spur geared motor
KGM25-370
Dia 25mm spur geared motor
