High Torque 20Kg.cm Low Noise Micro DC Gear Motor 2000rpm With Encoder
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KGM37-395 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $3-$6/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 5v～36v | Speed(rpm): | 2 Rpm-2000 Rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Brushed /Brushless |
| Type: | DC Gear Motors | Rated Torque: | ≤12Kg.cm |
| Stall Torque: | ≤20Kg.cm | Continuous Current(a): | ≤20A |
| Output Power: | ≤30W | Weight: | 400g |
| High Light: | 20Kg.Cm Micro DC Gear Motor,2000rpm Micro DC Gear Motor,Encoder Micro DC Geared Motor |
||
Product Description

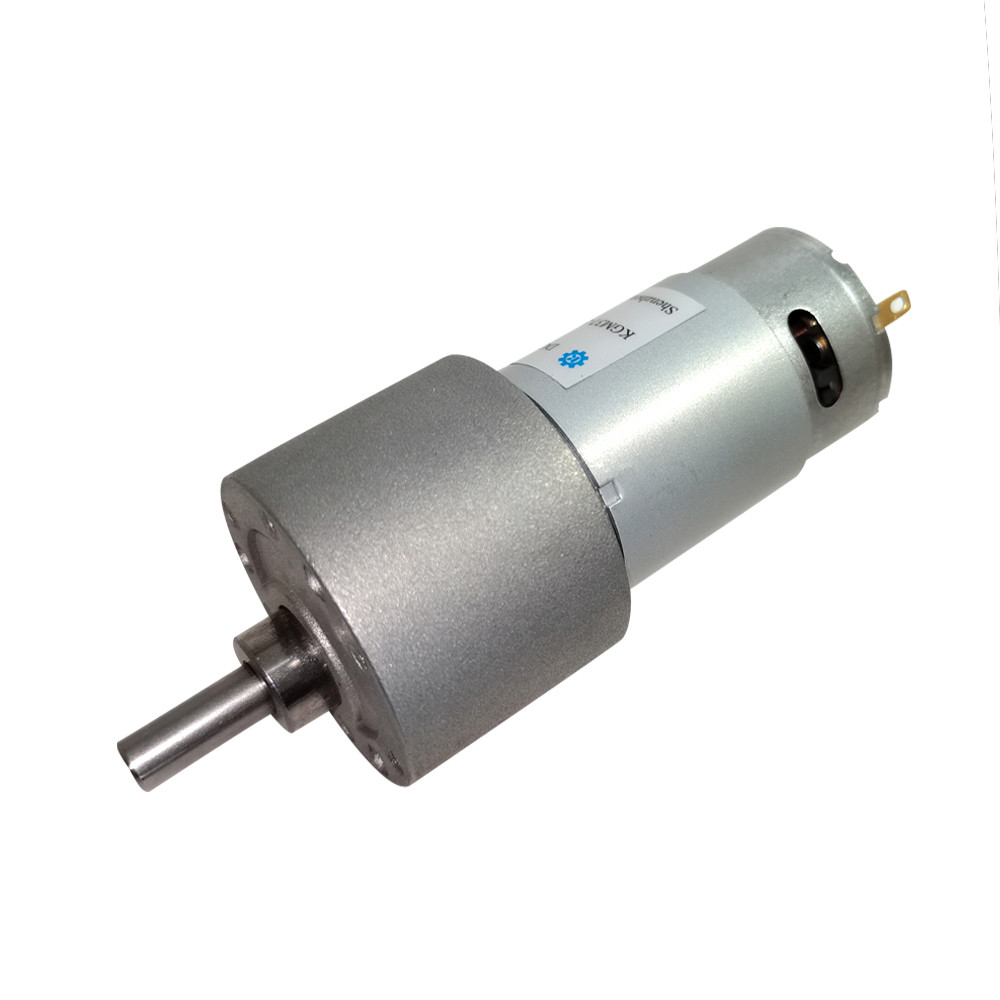

High torque low noise KGM37-395 37mm 131:1 dc 6v-36v dc gear motor with encoder
Product introduction
This is 37mm low speed geared motor,the spur gearbox can with many different
size motors,the brush motor have RS385 RS395 RF500 RF520 RS540 RS545
RS550 RS555 ,the reduction gearbox have many reduction ratio,choose different
reduction ratio have different speed and torque,the motors can with 12cpr and 16cpr
encoder.
Brand:Kind Motor
| Model | KGM37-555 |
| Gears Material | All Metal |
| Gearbox Reduction ratio | 10:1 ～810:1 |
| Motor model |
395 Brushes Motor (length is 47mm) 545 Brushes Motor (length is 50mm) 555 Brushes Motor (length is 57mm) |
| Brush Type | Carbon-brush |
| Voltage | 5.0vdc,6.0vdc,7.4vdc,9.0vdc,12.0vdc,24.0vdc |
| Speed | 2rpm ～2000rpm |
| Rated Torque |
≤20kg.cm
|
| Shaft Size | 6mm D shaft |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
KGM37-555 low speed geared motor
KGM37-395 low speed geared motor
