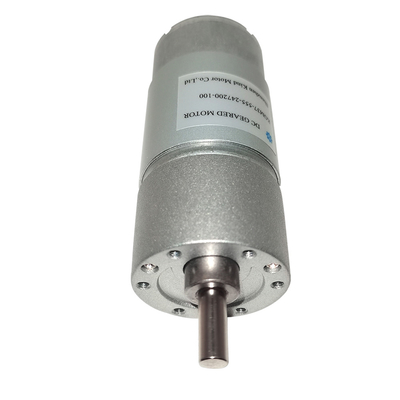

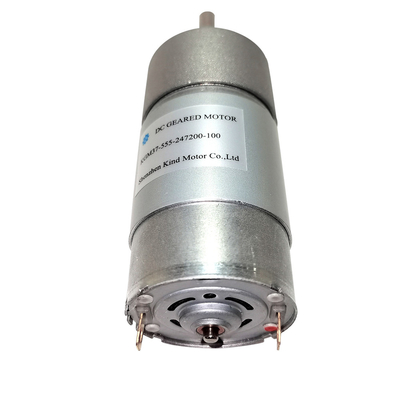

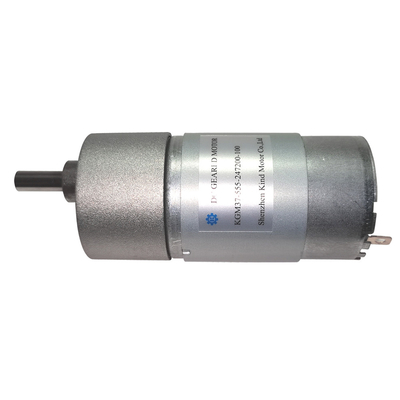

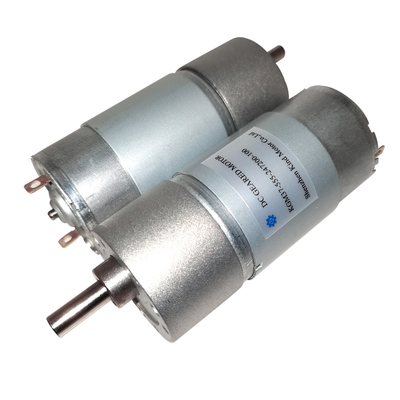

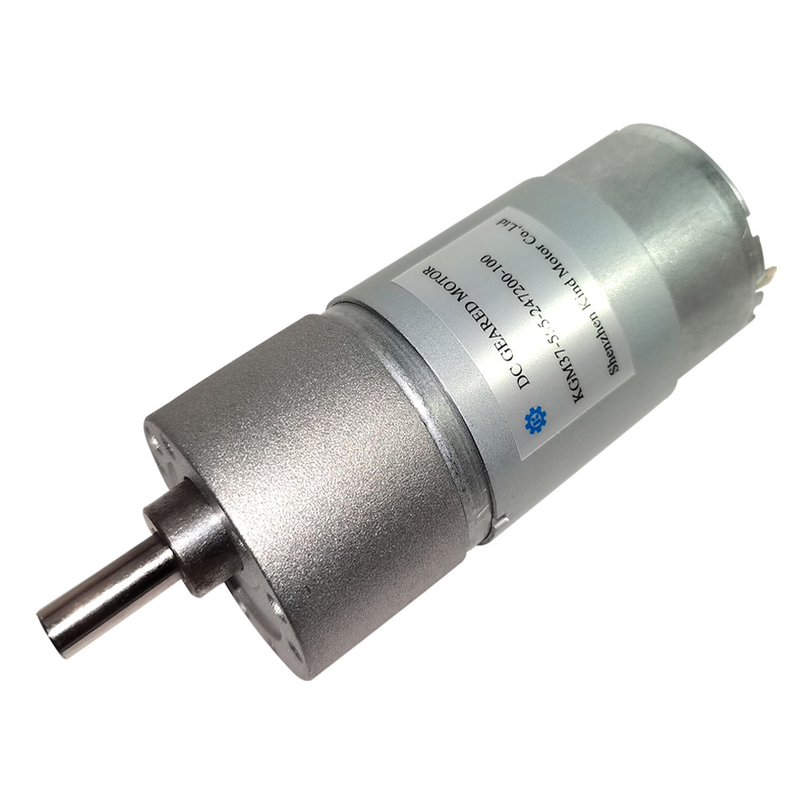

Eccentric Output 37mm Low Speed Geared Motor 12Kg.cm Stainless steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KGM37-555 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $3-$6/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 5v～36v | Speed(rpm): | 2 Rpm-2000 Rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Brushed /Brushless |
| Type: | DC Gear Motors | Rated Torque: | ≤12Kg.cm |
| Stall Torque: | ≤20Kg.cm | Continuous Current(a): | ≤20A |
| Output Power: | ≤30W | Weight: | 400g |
| High Light: | 37mm Low Speed Geared Motor,12Kg.Cm Low Speed Geared Motor,Eccentric Output Micro DC Geared Motor |
||
Product Description
Eccentric output Shaft 37mm diameter mental gearbox low rpm high precision 30KG.CM 40KG.CM micro dc gear motor
Product introduction
This is 37mm low speed geared motor,the spur gearbox can with many different
size motors,the brush motor have RS385 RS395 RF500 RF520 RS540 RS545
RS550 RS555 ,the reduction gearbox have many reduction ratio,choose different
reduction ratio have different speed and torque,the motors can with 12cpr and 16cpr
encoder.
Brand:Kind Motor
| Model | KGM37-555 |
| Gears Material | All Metal |
| Gearbox Reduction ratio | 10:1 ～810:1 |
| Motor model |
395 Brushes Motor (length is 47mm) 545 Brushes Motor (length is 50mm) 555 Brushes Motor (length is 57mm) |
| Brush Type | Carbon-brush |
| Voltage | 5.0vdc,6.0vdc,7.4vdc,9.0vdc,12.0vdc,24.0vdc |
| Speed | 2rpm ～2000rpm |
| Rated Torque |
≤20kg.cm
|
| Shaft Size | 6mm D shaft |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
KGM37-555 low speed geared motor
KGM37-395 low speed geared motor
