Micro Jga12-N20 12mm Square Dc Gear Reduction Brushed Motor 3v-6v
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KGM12-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $1.8-$3.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 1.2volt～24volt | Speed(rpm): | 3rpm～6100rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Metal Brushed/Carbon Brushed |
| Type: | DC Reduction Motor | Rated Torque: | ≤1.9Kg.cm |
| Stall Torque: | ≤3.2Kg.cm | Continuous Current(a): | ≤2A |
| Output Power: | ≤2W | Weight: | 10.2g |
| High Light: | 6100rpm N20 DC Gear Motor,Brushed N20 DC Gear Motor,190mNm n20 gear motor |
||
Product Description

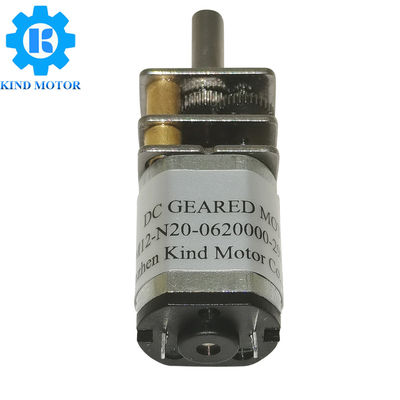

Micro jga12-n20 12mm square dc gear reduction brushed motor 3v-6v
Product introduction
This is Micro jga12-n20 12mm square dc gear reduction brushed motor,the gearbox can
with N10,N20,N30 and N50 motors,they have different torque,the motor have metal brush
and carbon brush,carbon brush have longer lifetime.
Brand:Kind Motor
| Model | KGM12-N20 |
| Gears Material | Stainless steel |
| Gearbox Reduction ratio | 5:1～1000:1 |
| Motor model | FF-N10 ,FF-N20 ,FF-N30 and FF-N50 Brushed Motor |
| Brush Type | Precious Metal-Brushed/Carbon-Brushed |
| Voltage |
1.5volt,3 volt,3.7 volt,4.5 volt,5 volt,6 volt,7.4 volt,8 volt,9 volt, 12 volt,24 volt |
| Speed | 3rpm-6000rpm |
| Rated Torque |
＜190mNm
|
| Shaft Size | 3mm D shaft |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 6mm~60mm can be chosen
█The parameters and shaft size can customized
N20 Metal-brush motor with spur 10*12mm square gearbox
N20 Carbon-brush motor with spur 10*12mm all metal square gearbox
N30 Metal-brush motor with spur 10*12mm all metal square gearbox
N30 Metal-brush motor with spur 10*12mm all metal square gearbox
