Product Details:

Place of Origin: China
Brand Name: Kind Motor
Certification: ISO9001/RoHS/CE
Model Number: KFF-M20

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: $0.4-$0.8/PCS
Packaging Details: Expect Standard Carton and Foam
Delivery Time: 1-6 weeks
Payment Terms: L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability: 500000/Month
Get Best Price Contact Now

Detail Information

Voltage(v): 1.2v-12v Speed(rpm): 3500rpm~35000rpm
Type: DC Brushed Motor Stall Torque: ≤16g.cm
Construction: Permanent Magnet Continuous Current(a): ≤450mA
Output Power: ≤0.5W Weight: 4.2g

Product Description

mini flat 10mm dc 1.5vdc 3vdc 3.6vdc 3.7vdc 5vdc 6vdc metal brush motor for toys



Product introduction

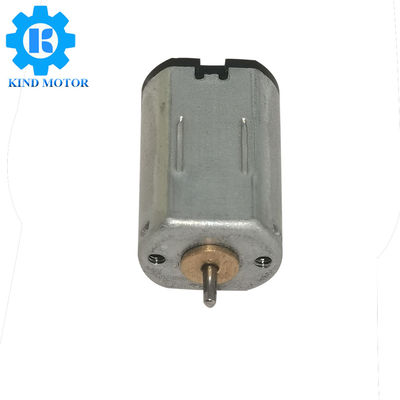

This is FF-M20 dc brushed motor,the motor is metal-brush,the voltage can be 1.5v 3v 3.7v

5v 6v 12v,the diameter is 10mm,10mm motor have different length,it's have M10,M20,M30

motor,they have different torque,longer length have higher torque,the parameters can customized,

the motor can with 10mm reduction gearbox



Brand:Kind Motor

Model KFF-M20
Brush Type Metal-brush
Voltage 1.5v,3v,5v,6v,12v
Speed 3500rpm-35000rpm
Stall Torque
<16g.cm
Shaft Size 1mm diameter shaft
Typical Application
Fan,Home Appliances,Toy,Massage instrument,Home Appliances,Electric tool,Pump,,Beauty equipment,Medical Apparatus,etc.


Product Parameters
ODM & OEM
If you need other size and patameters,diameter from 8mm~60mm can be chosen
The parameters and shaft size can customized
