High power 42mm 4275 300w 350w 12v 14.4v 18v 24v double ball bearings brushless dc motor
Product Details:
Place of Origin: | China |
Brand Name: | Kind Motor |
Certification: | ISO9001/RoHS/CE |
Model Number: | KBL-4275 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000pcs |
---|---|
Price: | $8-$20/PCS |
Packaging Details: | Expect Standard Carton and Foam |
Delivery Time: | 1-6 weeks |
Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
Supply Ability: | 500000/Month |
Detail Information |
|||
Voltage(v): | 6v-30v | Speed(rpm): | 1000rpm~25000rpm |
---|---|---|---|
Type: | DC Brushless Motor | Torque: | ≤8000g.cm |
Construction: | Permanent Magnet | Continuous Current(a): | ≤20A |
Output Power: | ≤300W | Weight: | 600g |
High Light: | BLDC4275 micro bldc motor,24v brushless dc motor,16ppr Encoder 24v brushless dc motor |
Product Description
High power 42mm 4275 300w 350w 12v 14.4v 18v 24v double ball bearings
brushless dc motor
Product introduction
This is 42mm BL4275 dc 12v 24v BLDC brushless motor,it's have have low noise and long
lifetime,the voltage can be 9volt 12volt 14.4volt 24volt 28.8volt,the parameters and shaft size
can customized.
Brand:Kind Motor
Model | KBL-4275 |
Brush Type | Brushless |
Voltage | 12v,14.4v,18v,24v,28.8v |
Speed | 1000rpm-20000rpm |
Rated Torque |
<5000g.cm
|
Shaft Size | 5mm diameter shaft |
Typical Application |
Fan,Home Appliances,Toy,Massage instrument,Home Appliances,Electric tool,Pump,,Beauty equipment,Medical Apparatus,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

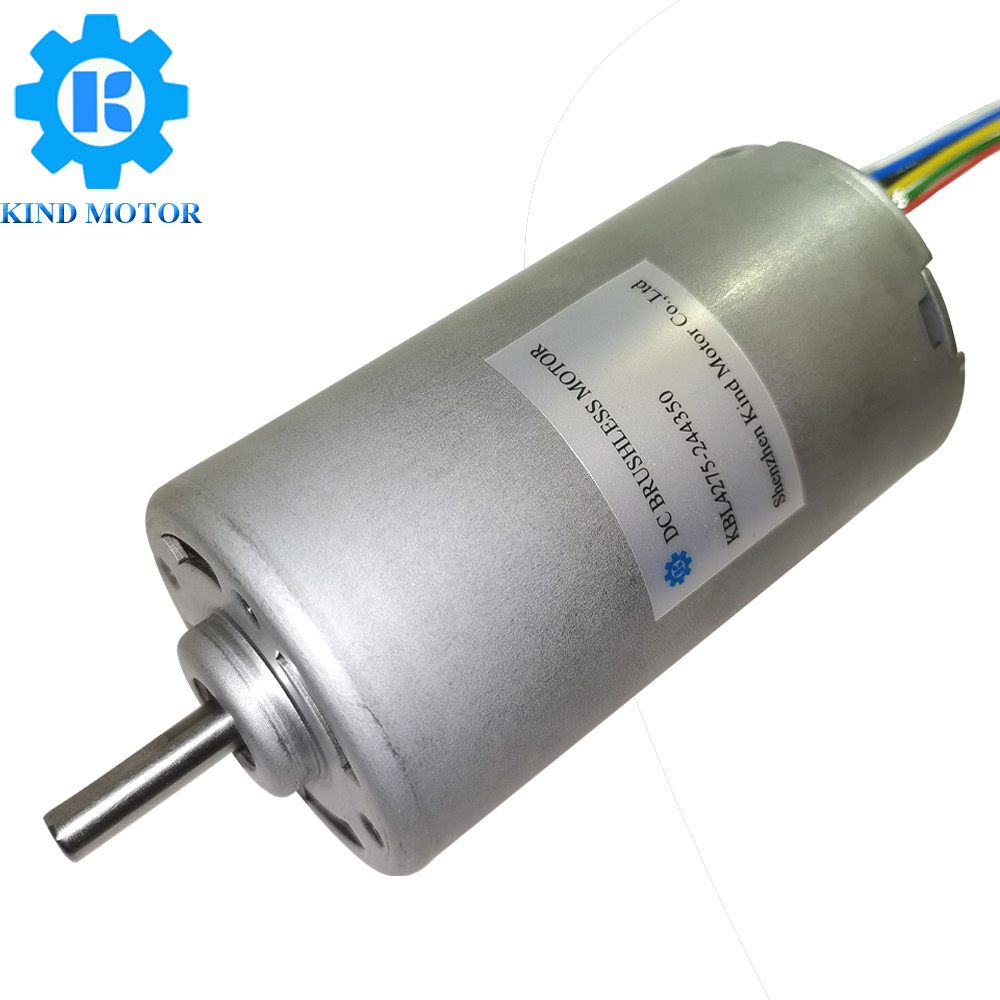

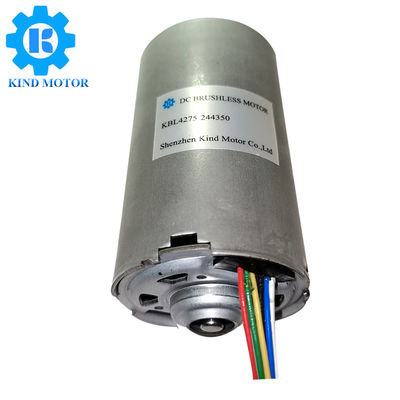

42mm KBL4275 DC brushless motor
