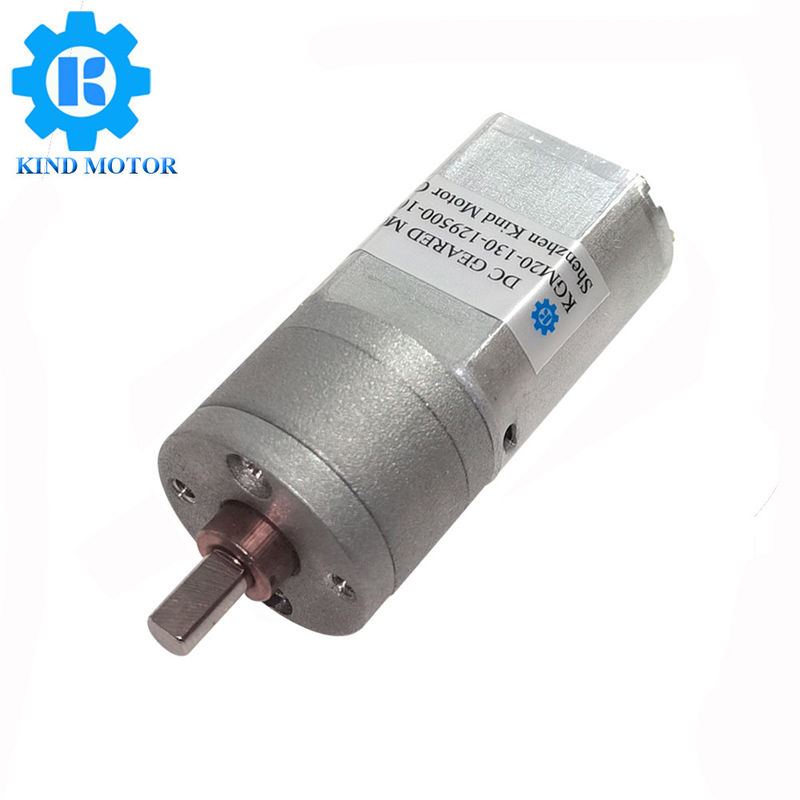

Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Product Details:
Place of Origin: | China |
Brand Name: | Kind Motor |
Certification: | ISO9001/RoHS/CE |
Model Number: | KGM20-130 |
Payment & Shipping Terms:
Minimum Order Quantity: | 500pcs |
---|---|
Price: | $2.5-$5/PCS |
Packaging Details: | Expect Standard Carton and Foam |
Delivery Time: | 1-6 weeks |
Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
Supply Ability: | 500000/Month |
Detail Information |
|||
Voltage(v): | 3.0vdc~24.0 Vdc | Speed(rpm): | 3~5500 Rpm |
---|---|---|---|
Gears Material: | Stainless Steel | Brush Type: | Carbon Brushed /Metal Brushed |
Type: | Gearmotor | Rated Torque: | ≤4.1Kg.cm |
Stall Torque: | ≤6.2Kg.cm | Continuous Current(a): | ≤3.2A |
Output Power: | ≤3.9W | Weight: | 45g |
High Light: | 12v dc gear motor 300 rpm,4000gCm 12v dc gear motor 300 rpm,Multiapplication metal gear motor |
Product Description
High quality Pololu GM20-130 GM20-180 DC 6V 12V 24V Precious
Metal Brush 20D Gearmotors factory suppliers
Product introduction
This is GM20-130 20mm DC 6V 12V 24V Precious Metal Brush Gearmotors with
encoder,the motors have metal brushed and carbon-brushed,carbon-brushed have
longer lifetime.the gearbox can with fk130 and fk180 brushed motors,the motors
length is different,the gearbox have many different reduction ratio to choose,the
motors can with 12ppr and 16ppr encoder.
Brand:Kind Motor
Model | KGM20-180 |
Gears Material | Stainless steel |
Gearbox Reduction ratio | 9:1 to 488:1 |
Motor model |
130 Brushed Motor(length is 25mm) 180 Brushed Motor(length is 28mm) |
Brush Type | Metal-Brushed/Carbon-Brushed |
Voltage | 4.5 volt,5 volt,,6 volt,,7.4 volt,,9 volt,12 volt,,24 volt |
Speed | 3 rpm to 5500 rpm |
Rated Torque |
<4000g.cm
|
Shaft Size | 4mm D shaft |
Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
GM20-180 DC 6V 12V 24V Brush (CB) 20D Gearmotors
