15KgCm Dc Worm Gear Motor 24v , 60g Worm Gear Motor With Encoder
Product Details:
Place of Origin: | China |
Brand Name: | Kind Motor |
Certification: | ISO9001/RoHS/CE |
Model Number: | KWM4632-370 |
Payment & Shipping Terms:
Minimum Order Quantity: | 500pcs |
---|---|
Price: | $3-$5/PCS |
Packaging Details: | Expect Standard Carton and Foam |
Delivery Time: | 1-6 weeks |
Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
Supply Ability: | 500000/Month |
Detail Information |
|||
Voltage(v): | 1.5volt-24volt | Speed(rpm): | 1rpm-500rpm |
---|---|---|---|
Gears Material: | Stainless Steel Gears | Brush Type: | Metal-brushed Or Carbon-brushed |
Type: | Worm Gear Motor | Torque: | ≤15Kg.cm |
Construction: | Permanent Magnet | Continuous Current(a): | ≤10A |
Output Power: | ≤5W | Motor Type: | DC Brushes Motor |
Weight: | 60g | Reduction Ratio: | 1:50- 1:3037 |
High Light: | 15KgCm dc worm gear motor 24v,dc worm gear motor 24v,60g Worm Gear Motor With Encoder |
Product Description
China factory supply low speed micro 4632 rs310 rs370 DC 3v 5v 6v 7.4v 8v 12v
24v worm gear reduction motor with encoder
Product introduction
This is micro dc 310 370 brushed motor with 46×32mm all-metal worm gearbox,it's right
angle shaft,the motor have precious metal-brushed and carbon-brushed,the motor parameters
can customized,the gearbox have many reduction ratio to choose,the motors can with encoder.
Model:KWM4632-370
1.Brand:Kind Motor.
2.Voltage:DC 3 volt-24 volt.
3.Gearbox:diameter 46×32mm flat worm all-metal gearbox,reduction ratio
50:1,62:1,86:1,104:1,155:1,187:1,262:1,337:1,562:1,787:1,1012:1 to choose.
4.Motor:dc KRS310,KRS370 brushed motors,the motors have
different length and torque
5.Modified versions for extended temperature and special environmental
conditions are available.
6.Custom modifications is available.
Prodcut Type | DC Worm Geared Motor |
Model
|
KWM4632-370
|
Gears Material | Metal |
Reduction ratio | 1:109~1:906 |
Motor model | 310,370 Brushed Motor |
Brush Type | Precious Metal-Brush/Carbon-Brush |
Voltage
|
3volt,3.3volt,3.7volt,4.5volt,5volt,6volt,7.4volt,9volt,12volt,
14.4volt,24volt
|
Speed |
1rpm - 500 rpm
|
Torque
|
≤15kg.cm
|
Shaft Size
|
Can Customized
|
Typical Application |
Electric Lock, Safebox, Robot, Acuator, Electric Valve, Toy,Massage instrument,Intelligent product.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

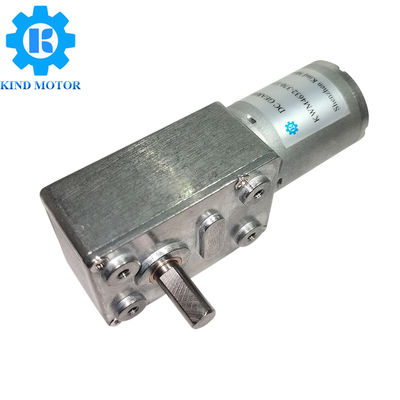

RS370 Metal brush motor with 46mm*32mm worm all metal gearbox
