Low Noise 0.5 Inch 12mm N10 N20 N30 3v 5v 6v Metal Carbon Brush Gearmotor
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KGM12-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $1.8-$3.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 1.5-24v | Speed(rpm): | 5-6000rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Metal Brushed/Carbon Brushed |
| Type: | DC Gear Motor | Rated Torque: | ≤2kg.cm |
| Stall Torque: | ≤3kg.cm | Continuous Current(a): | ≤2A |
| Output Power: | ≤2W | Weight: | 12g |
| High Light: | Metal Brushed N20 Motor With Encoder,12g N20 Motor With Encoder,3kgCm n20 gear motors |
||
Product Description
Low noise n10 n20 n30 metal carbon brush motor with gear ratio 1:20 1:30
1:50 1:75 1:100 1:150 1:210 1:250 1:298 1:380 1:1000 gearbox
Product introduction

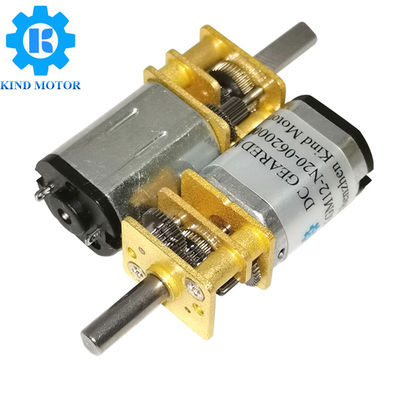

This is diameter 12mm N20 dc motor with 10×12mm all-metal flat gearbox,the motor have
precious metal-brushed and carbon-brushed,carbon brush have longer lifetime,but current is
higher,the gearbox can with N10,N20,N30 and N50 brush motor,they have different length
and length.
Brand:Kind Motor
| Model | KGM12-N20 |
| Gears Material | stainless steel |
| Gearbox Reduction ratio | 5/1-1000/1 |
| Motor model | N10 ,N20 ,N30 and N50 Brushed Motor |
| Brush Type | Precious Metal-Brush/Carbon-Brush |
| Voltage | 1.5-24v |
| Speed | 5 -6000rpm |
| Torque |
＜2kg.cm
|
| Shaft Size | 3mm D shaft |
| Typical Application |
Smart Lock,, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
N20 Metal-brush motor with metal gearbox
N20 Carbon-brush motor with metal gearbox
